CAMBRIDGE UNIVERSITY ONE DESIGN

The CAMBRIDGE UNIVERSITY ONE DESIGN was designed in 1936 for use by undergraduate sailors. The design was based on Uffa's National 12 design UFFA KING but with a larger waterline beam to make it slightly stiffer.

The Cambridge University One Design is detailed in Uffa's 1937 book Racing, Cruising and Design.



Length Overall 12'-0''
Length WL 12'-0''
Beam Max 4'-6''
Draught 3'-6''
Sail Area (sq feet) 90
Displacement (lb) 640
Original plans. The following are included:
Lines Plan
Full Size
Hull Construction

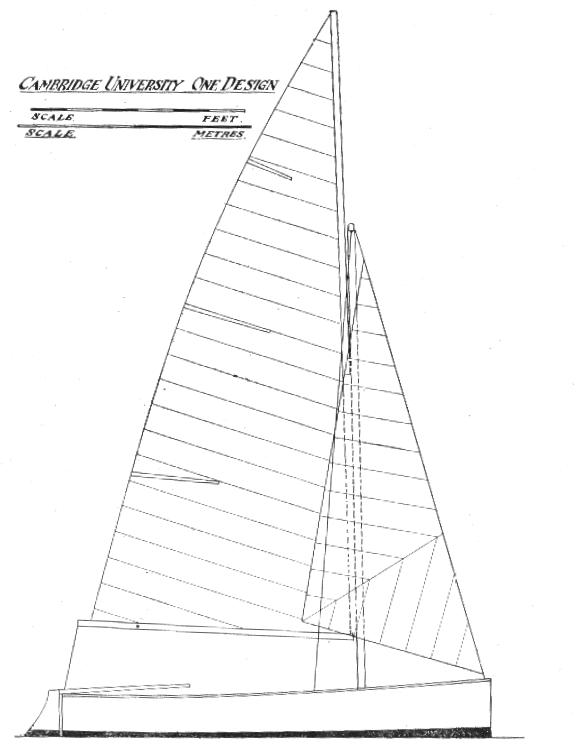

Sail Plan

Price per set: 45 (excluding Full size)
